CNC 700C 20000rpm Metal Drilling Tapping Machine Mitsubishi Control

Product Categories
SHENZHEN JOINT TECHNOLOGY CO.,LTD
Contact Now

CNC 700C 20000rpm Metal Drilling Tapping Machine Mitsubishi Control

Brand Name : JOINT

Model Number : VTC-700C

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1 SET

Price : NEGOTIATION

Payment Terms : T/T, L/C

Supply Ability : 1000 SETS/YEAR

Packaging Details : Wooden pallet/ wooden case

Working table size : 1000*500mm

X axis travel : 800mm

Y axis travel : 500mm

Z axis travel : 330mm

Distance from spindle nose to work table : 150-480mm

T slot : 3-14*125

Three axis : Linear guideway

Spindle taper : BT30/φ100 short nose spindle

Contact Now

Product Charactristics:

1. Modularization of various configurations, through which satisfy customers' different pricessing requirements and personalized selection: 10000-20000rpm, 16T or 21T tool magazine.

2. This series of drilling and tapping machine is designed mainly for porous precision small parts, with advantages of high processing speed, changing tool swiftly.

3. Our company accumulates and continuously optimizes the customer application data, can provide customers with application technical support, effcient processing performance is more outstanding.

Industrial Applicant:

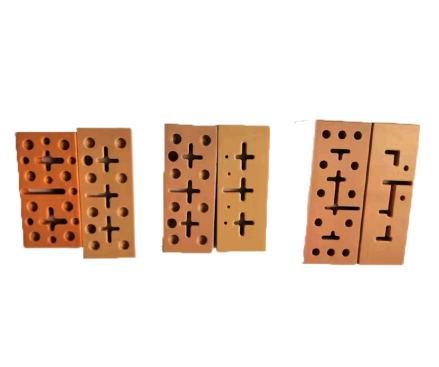

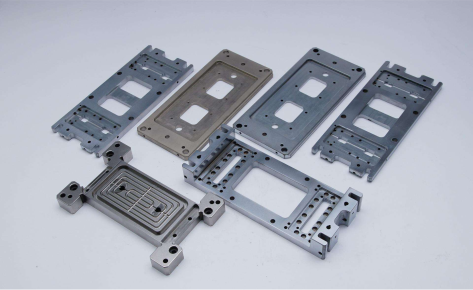

CNC 700C 20000rpm Metal Drilling Tapping Machine Mitsubishi Control Ceramic dielectric filter CNC 700C 20000rpm Metal Drilling Tapping Machine Mitsubishi Control Precision aluminum parts procession

Product specifications:

Item Unit Parameters
X axis travel mm 800
Y axis travel mm 500
Z axis travel mm 330
Distance between spindle surface and working table mm 150-480
Distance between spindle center and column mm 578
Working table size mm 900*420
Max load of working table KG 300
T slot number (No*size*pitch) mm 3-18*125
Tool holder specification BT30
Installation diameter mm 100
Rivet specification BT30
Rotation speed range r/min 40-20000
Output rating N.M 14.1/11.8
Spindle motor rate KW 3.7/3.7
X/Y axis motor output torque N.M 9/8
Z axis motor output torque N.M 22.5/12
X/Y axis motor rate KW 1.5/2.5
Z axis motor rate KW 3/2.7
Cutting feed m/min 15
X,Y,Z axis rapid movement speed m/min 48/48/48
Positioning accuracy mm 0.005/0.005/0.005
Rapid positioning accuracy mm 0.004/0.004/0.004
Dimension mm 2330*1930*2250
Total electrical capacity of machine KVA 15
The host weight KG 3500


Standard Accessories:

1. Fanuc/ Mitsubishi control system
2. Fully closed cover
3. Three axes Rexroth linear guideway
4. SPEEDCN spindle (BT30/100 diameter/20000rpm)
5. 21T servo tool magazine
6. Spindle oil cooler
7. Heat exchange
8. BT30 tool holder 1pic; 6'' vise 1pic; clamping kit 1 set
9. Penumatic system
10. Auto lubrication system
11. Work piece cooling system
12. Clean air gun/ water gun

Optional Accessories:
1. Chain type auto chip conveyor
2. 4 axis

Product details:

CNC 700C 20000rpm Metal Drilling Tapping Machine Mitsubishi Control

Package:

CNC 700C 20000rpm Metal Drilling Tapping Machine Mitsubishi Control


Product Tags:

700C Metal Drilling Tapping Machine



20000rpm Metal Drilling Tapping Machine



Mitsubishi Control Auto Tapping Machine
